While the main focus of the Strathspey Railway is running steam trains for the paying public, a small but dedicated group of volunteers has been restoring other items of heritage interest in spare moments between working on the loco fleet and improving locoshed infrastructure and facilities.

The current project is a Ruston Hornsby 48DS diesel shunter of 1948 which worked at Longmorn distillery until 1980 (even though Dr Beeching had closed the adjacent main line in 1967). Because it was presented to the Strathspey Railway repainted with advertisements for Queen Anne blended scotch whisky, it is known to most people as “Queen Anne”.

To find out more about our aims, follow this link or click the [About] button above.

This Blog was started over 5 years after the project began, so most of the initial blog entries are retrospective.

Saturday 3 November 2018

Cab Progress

Other work has meant that progress has been slow on Queen Anne.  The engine is running better (of which more later), but most work has concentrated on the cab.

The New Cab

The edges of the "doorways" into the cab are reinforced by what is known as "Half-round Feather Edging" which is riveted to the side platework.  Because the edges are curved in places, the feather edging has to be bent to the same shape as the platework.  To do this a jig was made from a 10mm flat metal plate and circular discs which had been turned to the radii of the curves on the cab sides.  The discs were held in place by 10mm bolts and other 10mm bolts were used to hold the feather edging in place and guide the bending process.

By carefully heating the feather edge to orange heat using an oxy-propane torch, the feather edging was bent to the required profile.  Care has to be taken in heating the metal.  Too much heat and the edging will kink to a radius that is too small.  Too little heat and the edging will not follow the circular arc.  The heating and bending has to be done carefully and slowly.  Some hammering is required to keep the edging flat.

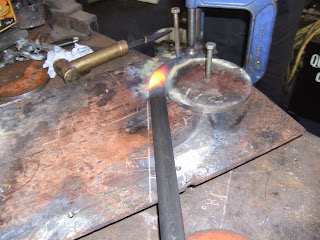

Feather Edge - Making the first bend
Feather Edge - Making the second bend
The finished edging was offered up to the cab platework and found to be a close match requiring very little fettling.  A special jig was made to help drill 6mm holes in the centre of the edging and each piece (there are 8 in all) was drilled to take the rivets.  The edging was clamped to the platework and matching holes drilled through.

All 8 shaped Feather Edge strips

Feather Edge being fixed to the cab side
The edging on the upper sections of the cab has to be merged with the edging around the roof, so these panels had their edging bolted on as we are not yet ready to work on the roof.  The edging for the lower panels was cold riveted in place using custom-made 6mm countersunk rivets.  Before riveting, a thick layer of red oxide paint was applied to both surfaces, and some oil-based mastic was applied around the curved parts where the edging is not absolutely flat.  The paint and mastic are used as an interfay compound to fill up any imperfections and prevent corrosion setting in between the two pieces of metal.  The edging is riveted while the interfay compound is still soft.

To date, the lower right-hand side of the cab has been assembled using angle iron to join to the front and rear cab platework.  At the moment this has been done entirely using specially made stainless steel domed Whitworth screws to match those used on the original.  On the original cab the angles were fixed using domed rivets on one leg and domed screws on the other.  We will be doing the same, and the domed rivets have already been made, but this will only be done once all the angles etc. have been drilled.  When finally riveting and bolting the cab together, wet red oxide paint will again be used as an interfay compound.
Lower RHS of cab in place

Side View

Front View

Lower RHS of cab viewed from inside

Engine Progress

The engine is now running better without the grey smoke caused by unburnt diesel.  One of the original injectors was not really serviceable and suffered from severe back leakage.  Fortunately a local injection specialist happened to have a reconditioned VRH injector in stock that still worked, which has now replaced the bad injector.

Paint Colours

Someone (I believe he was working on an 88DS shunter) sent in a question about the proposed "Ruston Green" colour, but unfortunately it was accidentally deleted.  The sender queried the original blog post that suggested using Lincoln Green (BS381C 276).  The acknowledged expert on all things Ruston, Ray Hooley, states that Ruston Hornsby used Deep Bronze Green (BS381C 224) and we have one of his paint samples.  Deep Bronze Green is very dark, and seems much darker than the green paint that has been exposed by rubbing down.  Further tests on the old paintwork will be carried out, and comparisons made with a batch of shade 224 paint.  The actual shade that will finally be used is subject to further study.
